Category: Architectural Windows

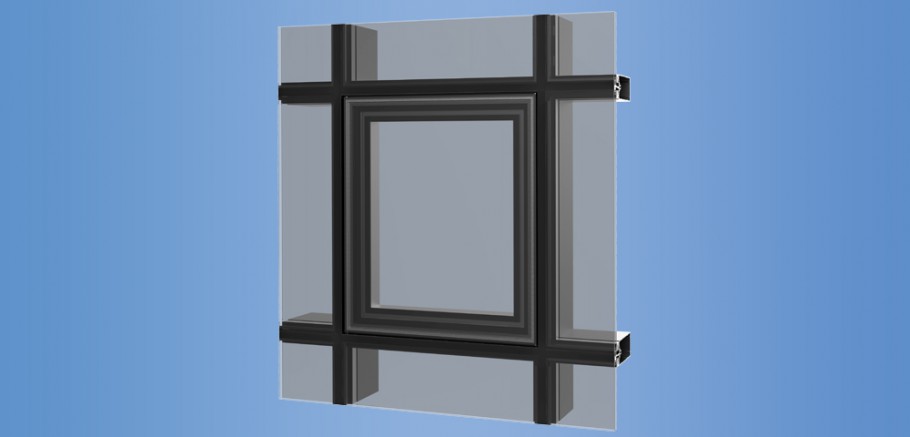

The YOV SSG Vent enables designers to provide ventilation to architectural aluminum wall systems without adding the large sight line of traditional windows, as it seemlessly blends with the surrounding framing system to become virtually invisible when viewed from the exterior.

The YOV SSG Vent enables designers to provide ventilation to architectural aluminum wall systems without adding the large sight line of traditional windows, as it seemlessly blends with the surrounding framing system to become virtually invisible when viewed from the exterior. This product is an excellent choice for schools, offices and other commercial structures requiring ventilation.

The YOV SSG provides excellent ventilation that meets the 2012 International Energy Conservation Code (IECC) through Zone 6 with standard Low E (U = 0.39 COG). In addition to exceptional thermal performance and condensation resistance in an SSG Vent product, this system also provides AW 70 architectural performance. AW 100 performance can be achieved with the Project Out configuration using the VMPL hardware.

Read More

Product Data

Features

Non-Thermal

Benefits

  • Glazes into a 4-sided SSG Curtain Wall (Field and Shop Glazed) or any 2-sided vertical combination of SSG/Captured systems*

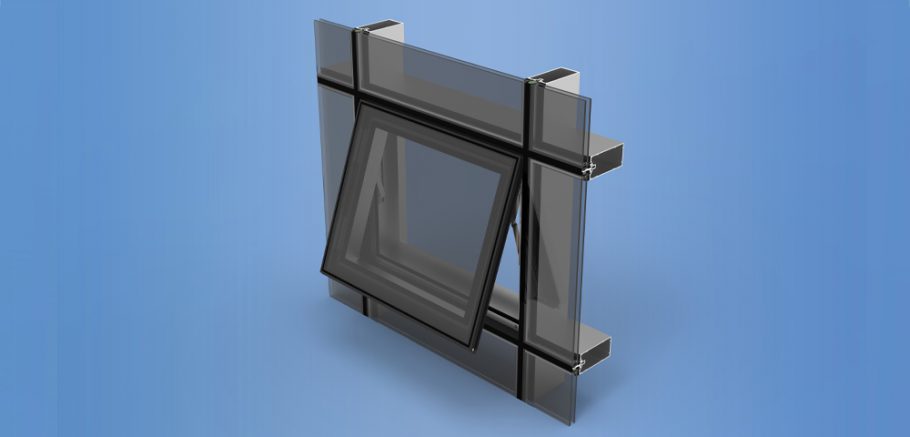

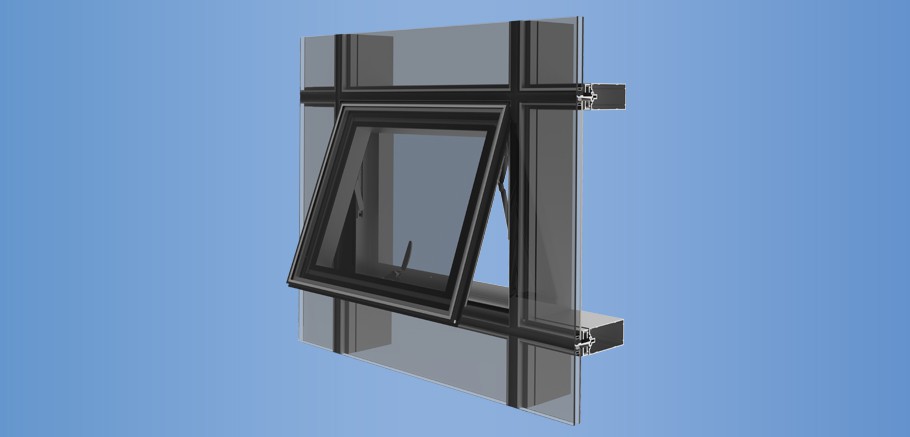

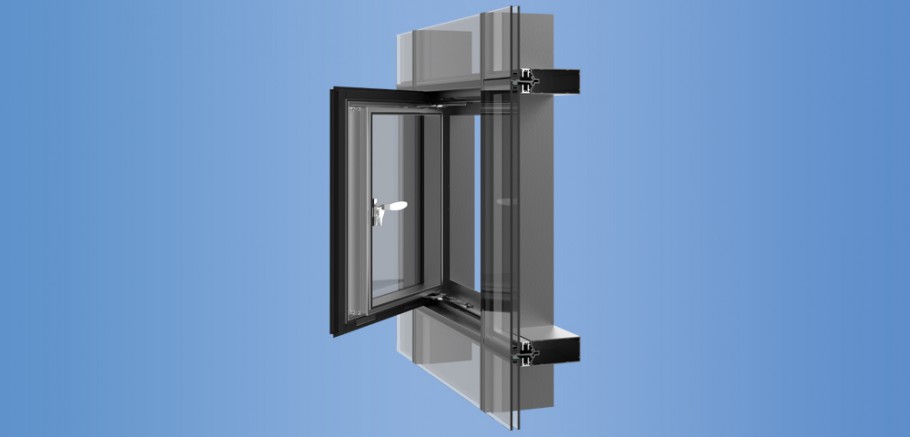

  • Available configurations: Casement Out or Project Out
  • Glass is bonded to vent’s frame without the need for additional retainers, providing a clean look
  • Accepts 1” insulating glass
  • Tinted glass option for more aesthetic look
  • Factory glazing and screens available upon request
  • YKK AP Heavy Duty, Stainless Steel hinges and Standard White Bronze cast locking hardware
  • Vent and Frame Multi-Point Locks available

*Limited vent opening on the 4-sided SSG hinge area. Contact your local rep for details

Data

Construction Use: New / Retrofit

Window Configurations: Casement Outswing / Operable - Project Out

Frame Depth: 2-3/4"

Glass Type: Insulating

Product Line

Anodized Plus®
