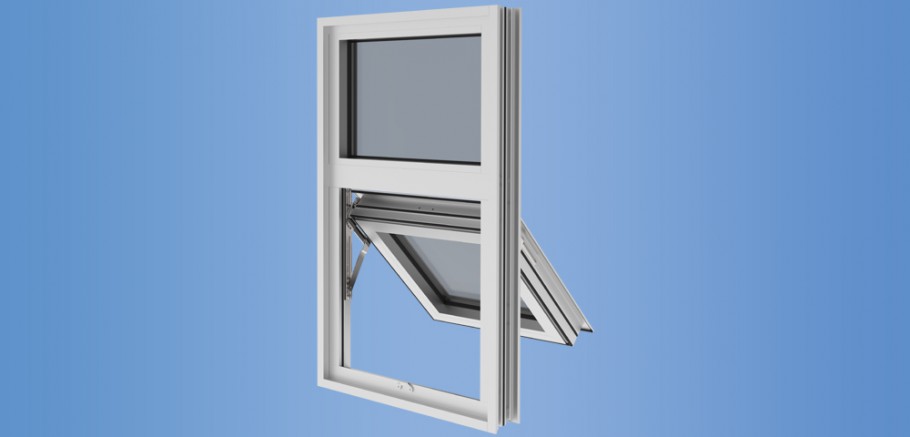

YOW 350 T - Thermally Broken Heavy Wall Window System for Insulating Glass
Category: Architectural Windows
YOW 350 T windows have been designed and engineered to provide the highest level of performance.
They have an overall depth of 3-1/2”, the strength of 1/8” wall thickness, and are thermally broken by means of MegaTherm® technology to conserve energy, reduce operating costs, and allow for a dual finish option to fit design needs. This system, when coupled with its mullion options and full line of accessories, can be used as a factory glazed window wall system.
Read More
Product Data
Features
Thermally Broken
Benefits
- AAMA/WDMA/CSA 101/I.S. 2/A 440-05
- AW-80 (Operable), AW-100 (Fixed)
- Air Infiltration: 0.10 CFM/FT²
- Water Infiltration: 15 PSF
- Thermal Performance:
- Standard Glazing – U Value: 0.53 (Casement), 0.51 (Project), 0.37 (Fixed)
- Triple Glazing – U Value: 0.45 (Casement), 0.44 (Project), 0.32 (Fixed)*
- Heavy Duty Hardware
- YKK AP Four Bar Hinges
- 4” NYC Approved Limit Device
- Multiple Glazing Combinations (See Reverse)
- Dual Glazed – Optional 1” Blinds
- Insulating Glass Triple Glazed – Optional 5/8” Blinds
- 1” Insulating Glass
- Factory Glazing and Screens
- Head/Jamb Receptors and Sill Flashing
- Applied Muntins, Panning, Trim, and Accessories
Data
Construction Use: New / Retrofit
Window Configurations: Casement Inswing / Casement Outswing / Fixed / Operable - Project In / Operable - Project Out
Frame Depth: 3-1/2"
Glass Type: Insulating
Thermal Method: Iso Struts
