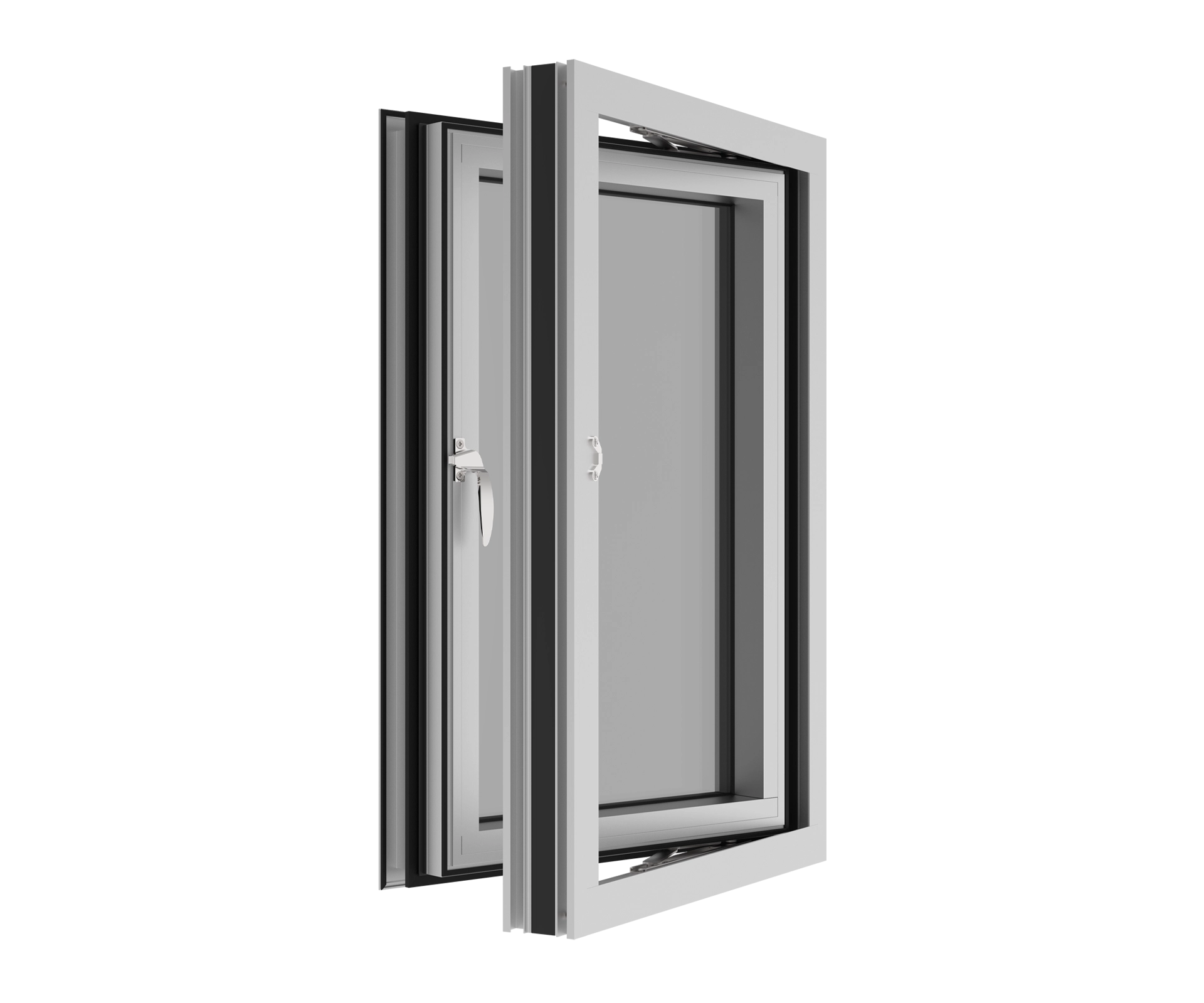

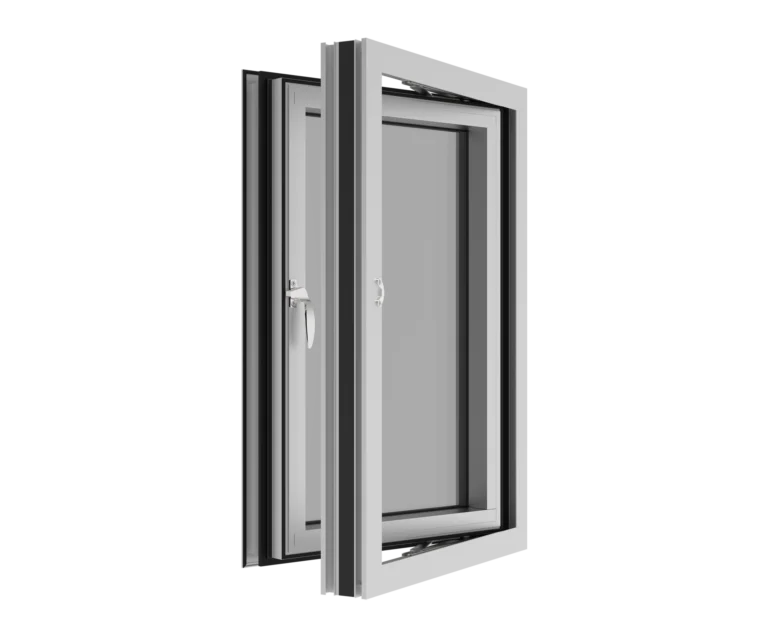

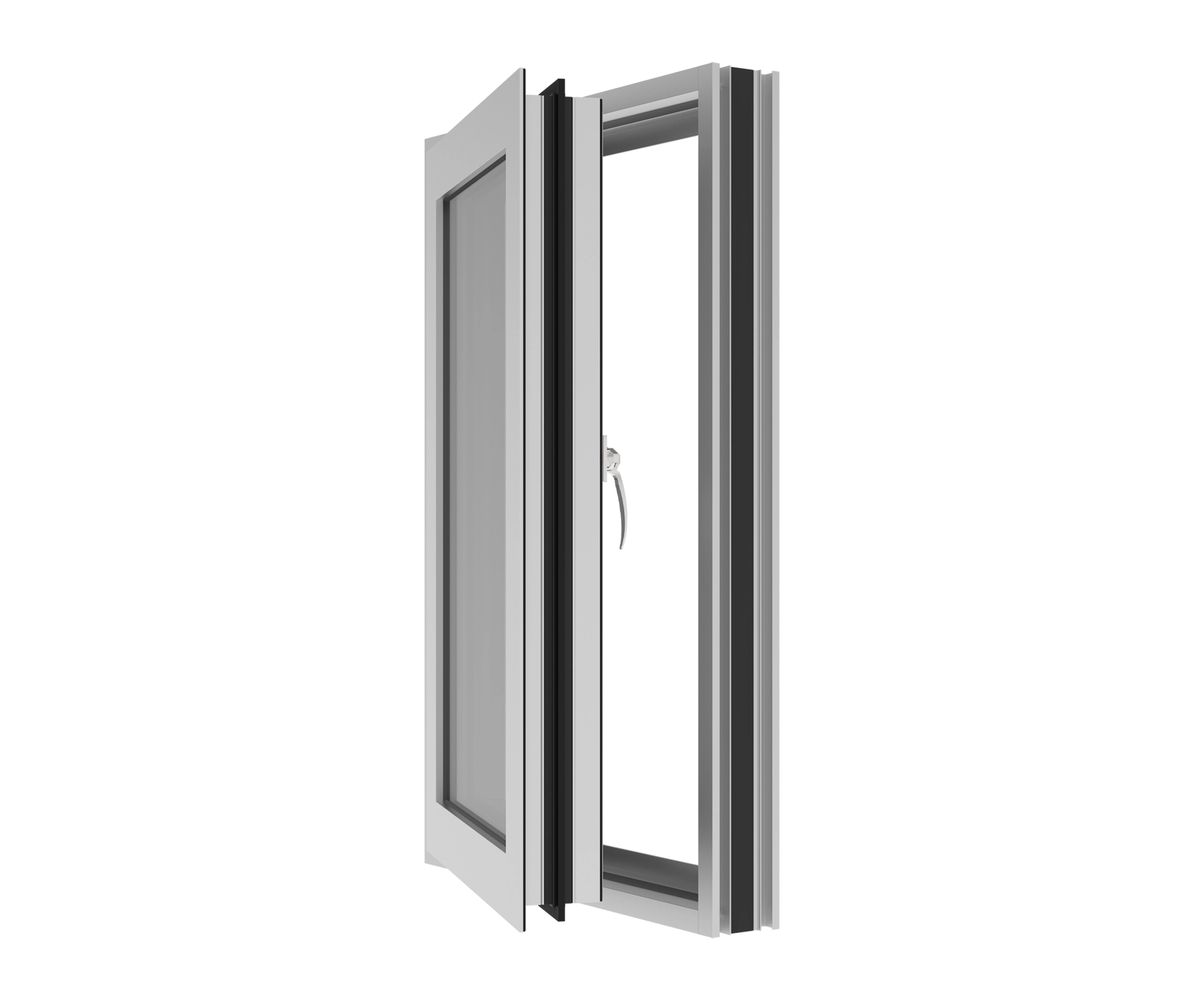

YOW 350 XT - Thermally Broken Operable Window System for Insulating Glass
Category: Architectural Windows
YOW 350 XT achieves state of the art energy performance while utilizing standard 1" insulating glass.
Innovative design attributes minimize energy loss through a multitude of thermal barriers. This factory glazed window wall system has an overall depth of 3-1/2″ and is thermally broken by a combination of MegaTherm® Thermal Breaks and gasketing to insulate multiple air chambers. Improved occupant comfort is achieved by interior surfaces that are significantly warmer than traditional window systems in cold climates.
Read More
Product Data
Features
Advanced Thermal / Thermally Broken
Benefits
- Up to 30% greater energy efficiency than traditional thermally broken systems – accepts a variety of glazing options, spacers, and gas fills for even greater efficiency
- AAMA/WDMA/CSAA 101/I.S. 2/A 440
- AW-PG100 Fixed
- AW-PG80 Operable, Fixed/Fixed, and Fixed/Operable
- Air Infiltration: 0.10 CFM / FT²
- Water Infiltration: 15 PSF
- YKK AP Euro Style Multi-Point Lock Handle
- Head / Jamb receptors and Sill Flashing
- Panning, Trim and Accessories
Data
Construction Use: New / Retrofit
Window Configurations: Casement Outswing / Fixed / Operable - Project Out
Frame Depth: 3-1/2"
Glass Type: Insulating
Thermal Method: Iso Struts
