YHC 300 OG - Outside Glazed Impact Curtain Wall System
System Options: Monolithic Glazing
Dry Glazed
Medium Pressure (60-90 psf)
Anchor Details

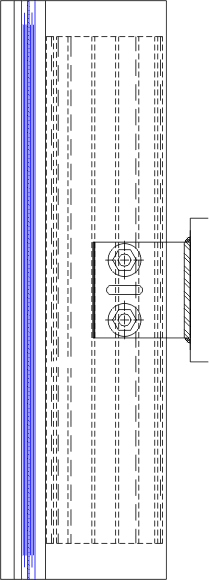

WINDLOAD / DEADLOAD ANCHOR DETAIL



Download DXF File

View / Print Detail
WINDLOAD ANCHOR DETAIL (SIDEVIEW)



Download DXF File

View / Print Detail
DEADLOAD ANCHOR DETAIL (SIDEVIEW)



Download DXF File

View / Print Detail

Consult YKK AP's Installation Instructions prior to ordering and installation of this product. Additional details and information may be obtained by calling YKK AP at 1-800-955-9551.
